Custom NES Controller

Mission

I recently found myself with a surplus of Adafruit Industries components, I decided to put a few of them to good use by making a custom NES controller.

Objectives

Design

The design is fairly simple, the only difference between it and a standard controller would be the use of the Center pin on the navigation switch as the Select button.

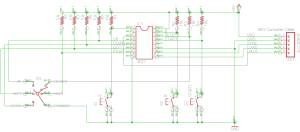

NES Controller Diagram

PCB

I had to resort to using quite a lot of jumper wires since the board is pretty small, it should also work fine on a double sided board (just not very efficiently).

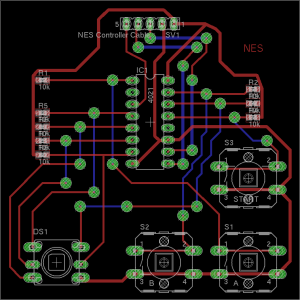

NES Controller PCB Replace the bottom layer (blue lines) with jumper wire.

Results

The controller works great! Though it could use some routing to make it more comfortable.

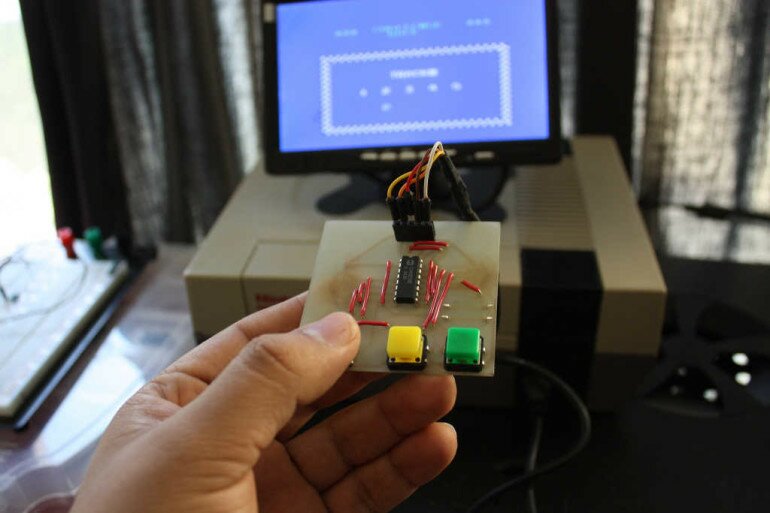

Front Back – Start Button

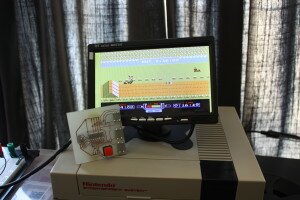

Back Front

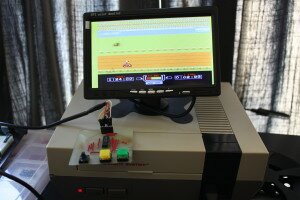

In Action Use

About the author : gamaral

Incredibly handsome open-source software engineer, gamedev and trekkie. I also draw comics in my spare time; they aren't very popular.
