Marshmallow Entertainment System

Back when I was a kid, I decided I wanted to make my own game console. Granted I also wanted to be an astronaut and the first man on Mars, but I had to draw the line somewhere.

Marshmallow Game Engine started as a way for me to keep my cross-platform game engine chops up during my spare time (not that I have that much spare time mind you). But with the advent of both powerful and affordable hardware like the Raspberry Pi, I started looking into creating my own game console again, and I have to admit, I’m very excited.

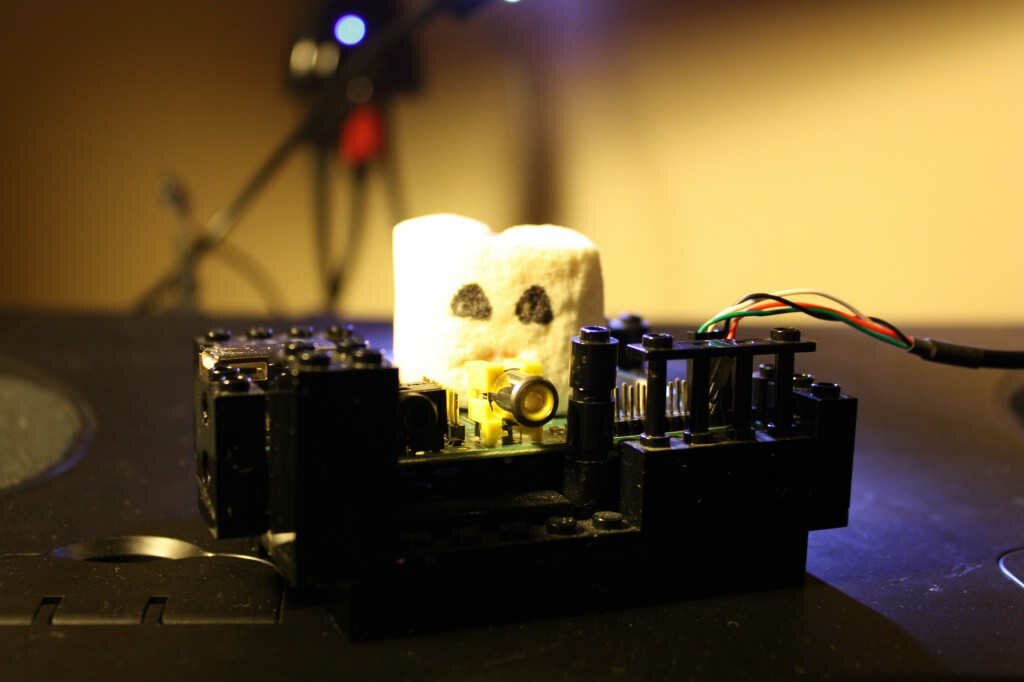

MES

Thanks to the wonderful Raspberry Pi, I’m finally able to create an affordable DIY console kit for my game engine.

The following are some common components in game consoles, I’ll go through the list so you can get an idea of how the end product will work.

Controllers & Ports

Luckily the RPI has a couple of built in USB ports. A simple USB port hub or something like the Mayflash Wii classic controller pro to PC which can handle two controllers per USB slot can be used to add more ports when needed.

Not all USB controllers will be supported, but I will target the most common ones in the beginning, user submitted mappings will soon follow.

Reliable power cycle

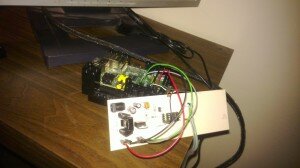

Since we can’t have people cut power to the running system willy-nilly, I created a little board to take care of the power distribution.

Back

An ATtiny85 MCU is the brains behind the board, it will later on output debug messages via the indicator LED, but for now it flashes at two different frequencies for boot and shutdown, it also signals the main board when it’s time to shutdown properly.

Front

The board is powered by a 5V@2A power supply which is forwarded to the main board when the console is turned on, the rest of the board runs on 3V3 and consumes about 0.007ma in stand-by mode, and about 10ma when the indicator light is on.

Hardware specs and source code can be found on my GitHub account, all covered under the BSD and CERN OH licenses.

Media Slot

Since I’m planning on having mainly downloadable content, an optical media drive or cartage slot would not make much sense (fun as it may be). I might add external USB storage support.

Enclosure

No definitive case design yet. I’m considering laser cut PCB.

Operating System

Since speed and boot time are very high priority when it comes to game consoles, I decided to build my own distro. It’s lean, mean and comes in one single flavor, COUGAR.

You can see it boot here, don’t look away or you might not see it boot up at all.

I found that on some LCD displays, screen settling takes longer than the actual system boot, which is pretty awesome. The game engine waits for the screen to be ready before it continues running, this applies for first boot and for video output switching (HDMI <=> Composite).

Game Engine

I’m using my own game engine which is still under heavy development, I’m trying to get people interested in helping out with port maintenance (specially the Windows and MacOS X ports). If you’re interested please contact me.

See it in action

I showed off my progress on Adafruit Industries Show and Tell

Fast-forward to the 11 minute mark.

Using real marshmallows and the MakeyMakey

Try it out!

If you want to try out the demo, just follow the instructions below:

1
2
3
wget http://downloads.marshmallow.me/sdcard.img.xz
xz -d sdcard.img.xz
sudo dd if=sdcard.img of=/dev/**YOUR-DEV-NODE**

After it’s done, insert the sdcard in your Raspberry Pi and plug it in!

Notes

You will need to have a keyboard handy since the odds you have a supported gamepad/joystick is pretty thin (donations welcome!).

F1 – restarts the demo ESC – kills the demo SPACE – Jumps LEFT – Move left RIGHT – Move right LSHIFT – Run

Donations

You are probably asking yourself “How can I help?”, well I’m glad you asked!

I’m currently taking hardware and PayPal donations, if you have a game controller you want supported, a Raspberry Pi laying around or too much cash in your bank account and want to fund further development, feel free to contact me or hit that nifty PayPal Donate button on my site.


Thanks for your interest in my project, please feel free to leave comments or suggestions below.

Also, I’m usually around on IRC #marshmallow_h @ freenode

G

About the author : gamaral

Incredibly handsome open-source software engineer, gamedev and trekkie. I also draw comics in my spare time; they aren't very popular.

View all articles

31 comments

  1. Chris Wesseling

    You could have the cartridge be a pointer to the downloadable content…

    How about printing box-art with a QR of the URL for the content on some cardboard and have a webcam be the interface to the pi?

  2. Pingback: Marshmallow razvedrilni sistem | Slo-Pi

  3. Pingback: DIY Raspberry Pi-based gaming console looks kinda sweet | Tux Doc

  4. Pingback: Build Your Own Raspberry Pi-Based Game Console | Tips for the Unready

  5. Pingback: Geet your geek on! « Ugh!!’s Greymatter Honeypot

  6. Pingback: Marshmallow Entertainment System #piday #raspberrypi @Raspberry_Pi « adafruit industries blog

  7. Pingback: Build Your Own Raspberry Pi-Based Game Console | Lifehacker Australia

  8. NoidZ

    A NES like case would be wonderfull. 2 USB ports where the controller ports are and a SD card slot where the cardridge slot is :D

    I can only help with some graphical design and interaction stuff (OS, menus etc. etc.)

    Just mail me if you need someone for that.

    Good luck from The Netherlands!

  9. Pingback: Marshmallow Entertainment System สร้างแพลตฟอร์มเกมบน Raspberry Pi | Raspberry Pi Thailand

  10. Pingback: Marshmallow Entertainment System #makeymakey #makeymakeymonday « adafruit industries blog


    1. Author
      gamaral

      Access to a dual shock 3 controller that I can connect via USB and works under Linux. :)

      FYI XBOX controllers are supported via xboxdrv.


        1. Author
          gamaral

          Thanks for pointing out the problem, Fixed! New image uploaded. The distro is my custom distro based off buildroot, no game engine. The MES/Game-Console is both the hardware and software (i.e. the RPI and a special build of my distro with a few tweaks and the demo).

  11. Jeroen

    Hello,

    Your distro boots insanely fast, awesome! I found where you start your game from. Instead of your game, I would like to start feh photo viewer. However, to install feh, I need the terminal. Could you tell me how to get into the terminal? I have removed the line where you start your game from, but now it hangs on the colory screen.

    Thanks in advance,

    Jeroen


    1. Author
      gamaral

      The MES image is tuned to work with Marshmallow and little else, it has no frame buffer console for example, you will need a TTL cable (like this one http://www.adafruit.com/products/954) if you plan on messing around with it TTY. It might be easier if you play around with rpi-buildroot (my vanilla Raspberry Pi distro) since it has no MES-specific tweaks.

      As a side note, I think feh requires X11 does it not? if so, you will need to turn X11 on in builroot so it actually gets built in your system. The demo image and the MES image don’t have X11 and friends.

      I’ll soon be releasing more details on how to use rpi-buildroot to build a custom Raspberry Pi image, maybe you can wait a little for it to be released, if not, feel free to email me and I can give you a hand. :)

      You can find rpi-buildroot here: https://github.com/gamaral/rpi-buildroot

  12. Pingback: Build Your Own Raspberry Pi-Based Game Console | Kotaku Australia

  13. spinal

    I really like the idea, you mentioned making a dashboard for MES, does this mean that eventually multiple games will be available with the potential for people to code games specifically for MES?


    1. Author
      gamaral

      Bingo, after I finish refactoring I will continue development on the dashboard. I’m planning on offering a system-wide marshmallow build which developers can specifically target if they so choose. developers could also bundle their own custom version. This means that other non-marshmallow games could run as well, that’s if they can work directly with Video Core.

      1. spinal

        I wonder how difficult it would be to use this as a target for monkey (http://www.monkeycoder.co.nz/), which I am currently using for one of my games. It would be nice to be able to compile a MES game along with all of the other targets it offers.

  14. fred

    Hello, I tryed the buildroot toolchain to compile

    wget http://dl.guillermoamaral.com/rpi/rpi-buildroot-toolchain.tar.xz tar -xvJf rpi-buildroot-toolchain.tar.xz source rpi-buildroot-toolchain/env $CC -I”${BUILDROOT_STAGING_DIR}/usr/include” \ -I”${BUILDROOT_STAGING_DIR}/opt/vc/include” \ -L”${BUILDROOT_STAGING_DIR}/opt/vc/lib” \ -L”${BUILDROOT_STAGING_DIR}/usr/lib” \ -L”${BUILDROOT_STAGING_DIR}/lib” \ -L”${BUILDROOT_TARGET_DIR}/opt/vc/lib” \ -L”${BUILDROOT_TARGET_DIR}/usr/lib” \ -L”${BUILDROOT_TARGET_DIR}/lib” \ main.c

    But at the end i just get an error : /home/fred/rpi-buildroot-toolchain-x86_64/host/usr/bin/../libexec/gcc/arm-buildroot-linux-uclibcgnueabi/4.7.3/cc1: error while loading shared libraries: libppl_c.so.4: cannot open shared object file: No such file or directory
