Custom NES Controller

Mission

I recently found myself with a surplus of Adafruit Industries components, I decided to put a few of them to good use by making a custom NES controller.

Objectives

Design

The design is fairly simple, the only difference between it and a standard controller would be the use of the Center pin on the navigation switch as the Select button.

NES Controller Diagram

PCB

I had to resort to using quite a lot of jumper wires since the board is pretty small, it should also work fine on a double sided board (just not very efficiently).

NES Controller PCB Replace the bottom layer (blue lines) with jumper wire.

Results

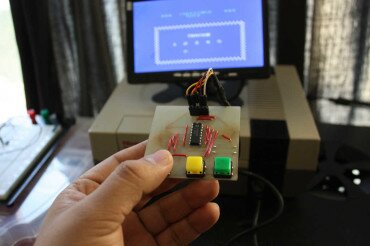

The controller works great! Though it could use some routing to make it more comfortable.

Front Back – Start Button

Back Front

In Action Use

RPI-issue

Raspberry Pi Buildroot update!

RPI-Buildroot

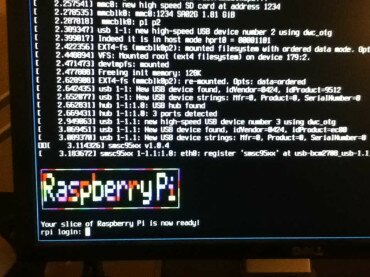

My custom Raspberry Pi distro is now sporting an up-to-date userland along side a 3.6.10 kernel and a few more tweaks (including that colorful /etc/issue you see above).

This distro is based on Buildroot, that means it very flexible and well suited for numerous customized embedded linux applications. Makers will find it extremely useful since it can be used to create powerful custom deployments – Want to control a robot using a Raspberry Pi? then this is the distro for you – Please keep in mind that the default configuration builds a system with nothing more than the bare essentials.

Please checkout the README file for more information.

You may download the test-drive image here: http://dl.guillermoamaral.com/rpi/sdcard.img.xz (user root – no password)

How to flash

1
2
3
wget http://dl.guillermoamaral.com/rpi/sdcard.img.xz
xz -d sdcard.img.xz
sudo dd if=sdcard.img of=/dev/**YOUR-DEV-NODE**

MES

Marshmallow Entertainment System demo image was also updated, now with (buggy) ALSA support!

Raspberry Pi ALSA leaves a lot to be desired, so don’t expect too much. :)

You may download the platformer demo image here: http://downloads.marshmallow.me/sdcard.img.xz

How to flash

1
2
3
wget http://downloads.marshmallow.me/sdcard.img.xz
xz -d sdcard.img.xz
sudo dd if=sdcard.img of=/dev/**YOUR-DEV-NODE**

Thanks

I would like to thanks you all your great emails, the support is much appreciated!

12110042

MakeyMakey NES Controller Shield

Idea

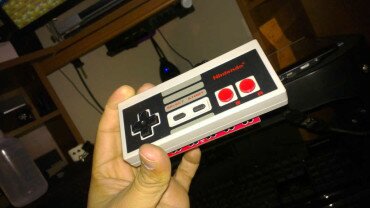

Today I decided to do something fun, I went to my local flea market for inspiration and found it! It came in the form of a dead but in good-condition NES controller. After closer inspection, the problem was a dead 4021 p2s IC.

I was about to convert it to a TV controller when I remembered it was MakeyMakey Monday!

Resurrection

I started by cleaning the device and figuring out how I was gonna go about wiring the buttons to the MakeyMakey. I then got a few of my Adafruit Extra-long break-away headers and an old red pen (I needed the ink, you will see why in a moment).

I inked the top of the headers with the red pen’s ink and then placed the NES Controller back on-top of the headers; This gave me a clear idea of there I should drill.

I got my trusty hand drill and fitted the headers to the back of the NES Controller. Afterwards, I testing the header locations to make sure the MakeyMakey fit correctly. It did!

My attention them moved over to the PCB, I cut the wires for the controller cable and desoldered the whole thing, IC and all.

I then soldered a few wires from the headers to the controller PCB.

And finally cut the pull-up resistor traces; this step is extremely important! Failing to cut them will result in all buttons getting triggered.

I then cleaned up and closed the controller making sure I didn’t bend any of the internal wires.

Tested it by playing some minecraft.

Mapping

Up Arrow = W Left Arrow = A Down Arrow = S Right Arrow = D

Select = F Start = G

B = RIGHT CLICK A = LEFT CLICK

Video

Marshmallow on the Raspberry Pi

Marshmallow Entertainment System

Back when I was a kid, I decided I wanted to make my own game console. Granted I also wanted to be an astronaut and the first man on Mars, but I had to draw the line somewhere.

[Marshmallow Game Engine][marshmallow_h] started as a way for me to keep my cross-platform game engine chops up during my spare time (not that I have that much spare time mind you). But with the advent of both powerful and affordable hardware like the [Raspberry Pi][rpi], I started looking into creating my own game console again, and I have to admit, I’m very excited.

Continue reading

Raspberry Pi - Power Button Assembly (Front)

Marshmallow Raspberry Pi Power Button – PCB [PROTOTYPE]

First demo PCB board, single-side with 3 jumpers. It’s freshly exposed and ready for drilling. I used a copper board I had laying around, it was a bit scuffed so excuse the pockmarks.

I’ll expose the double-sided version later this week, after I hit the electronics store.

The rpi-pwrbtn repository on GitHub includes the double sided board schem and the MCU code: https://github.com/gamaral/rpi-pwrbtn
